Heavy Hitter Surron Raysing Billet Suspension Triangle

Heavy HitterSKU: SURTRI1-RD

Color: Red
Price:
Sale price $99.89
Stock:
Sold Out

Product Info

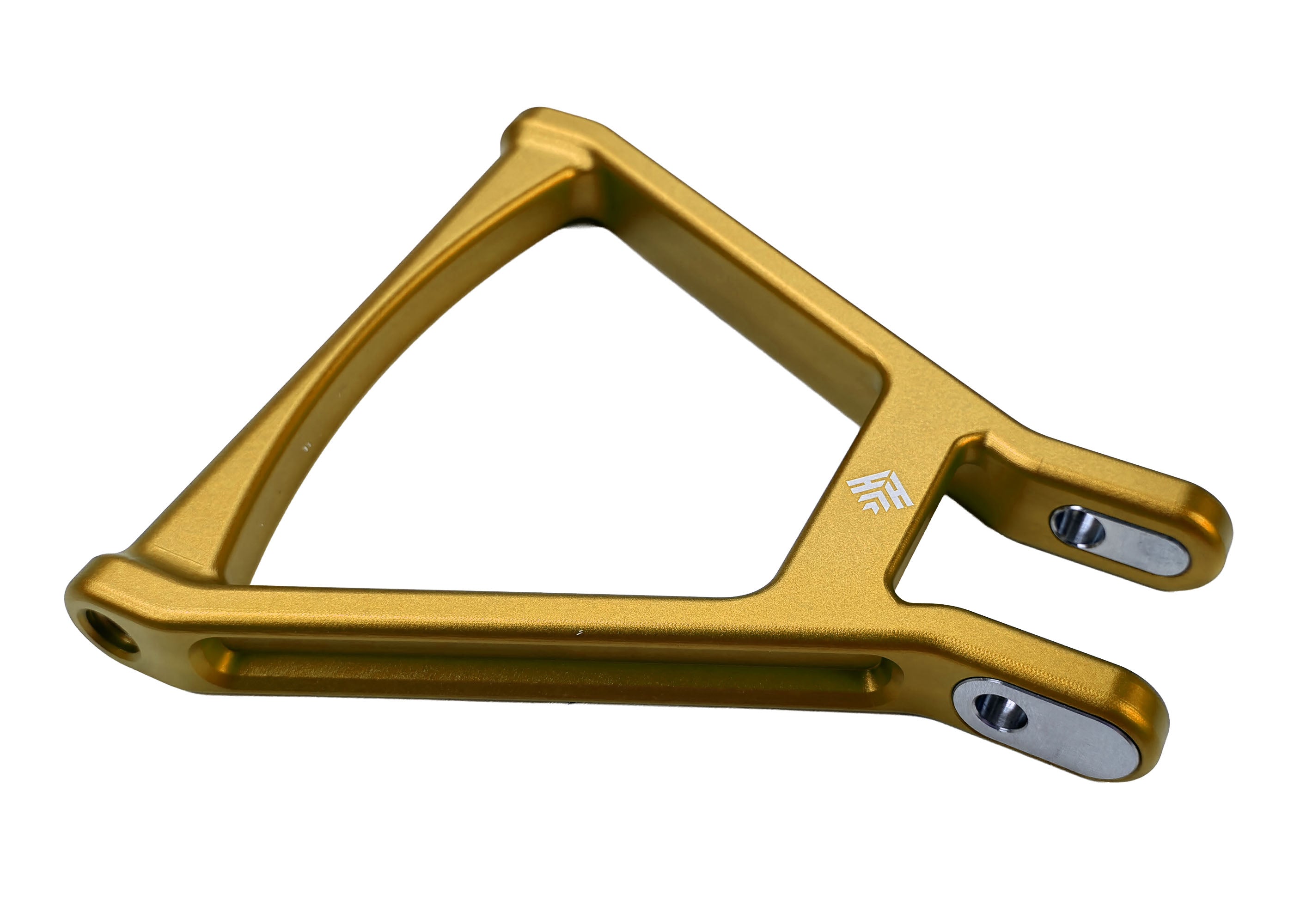

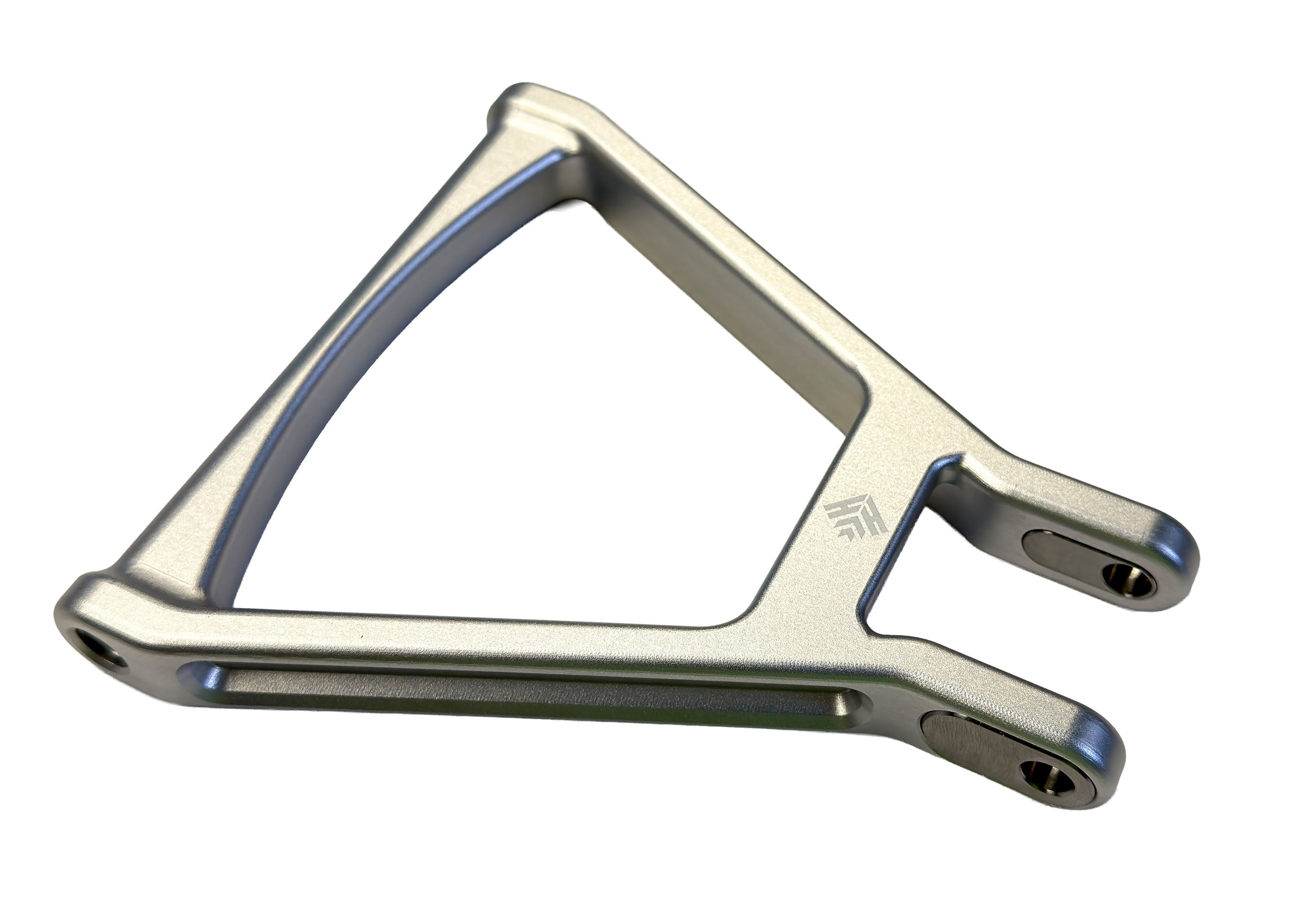

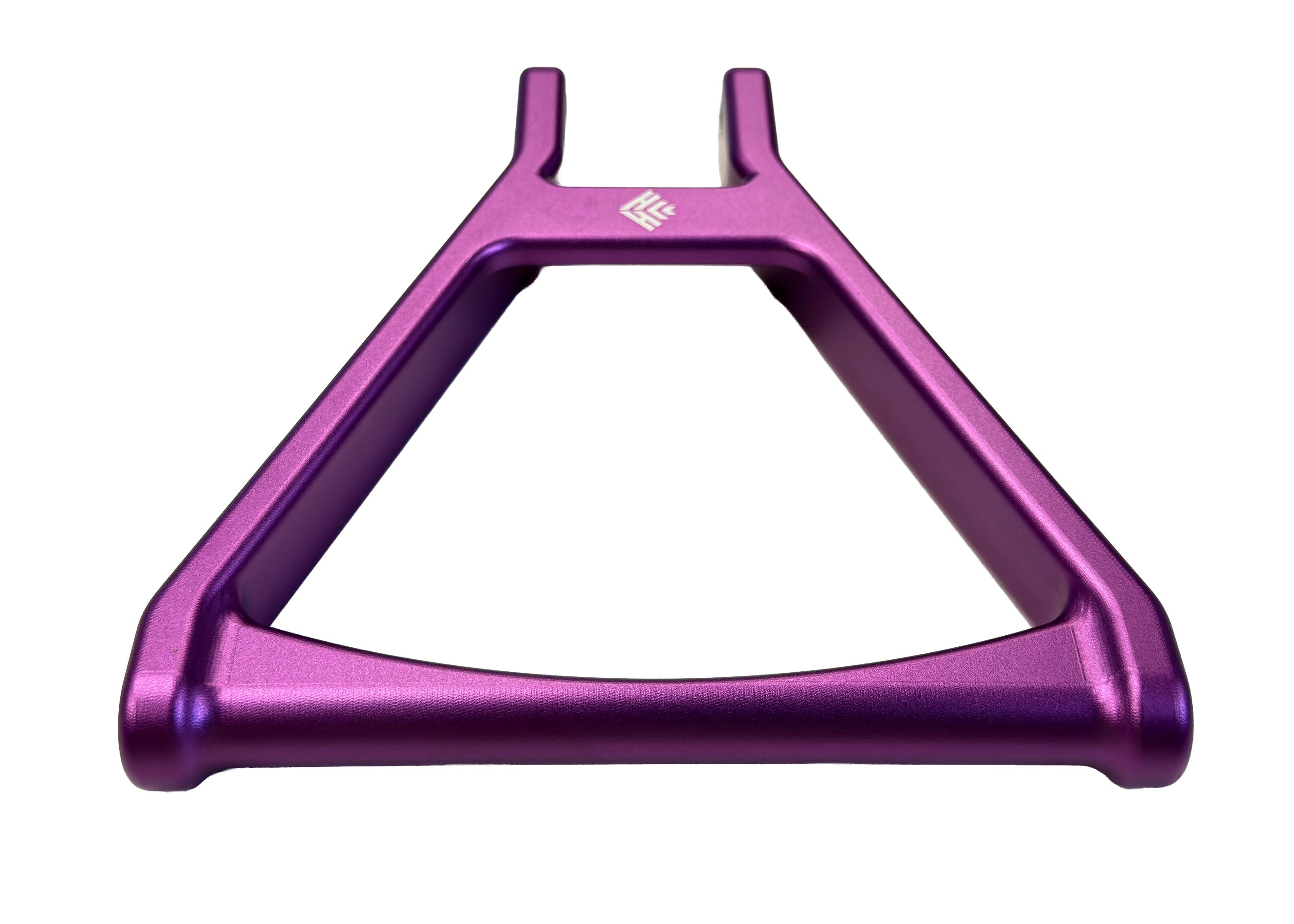

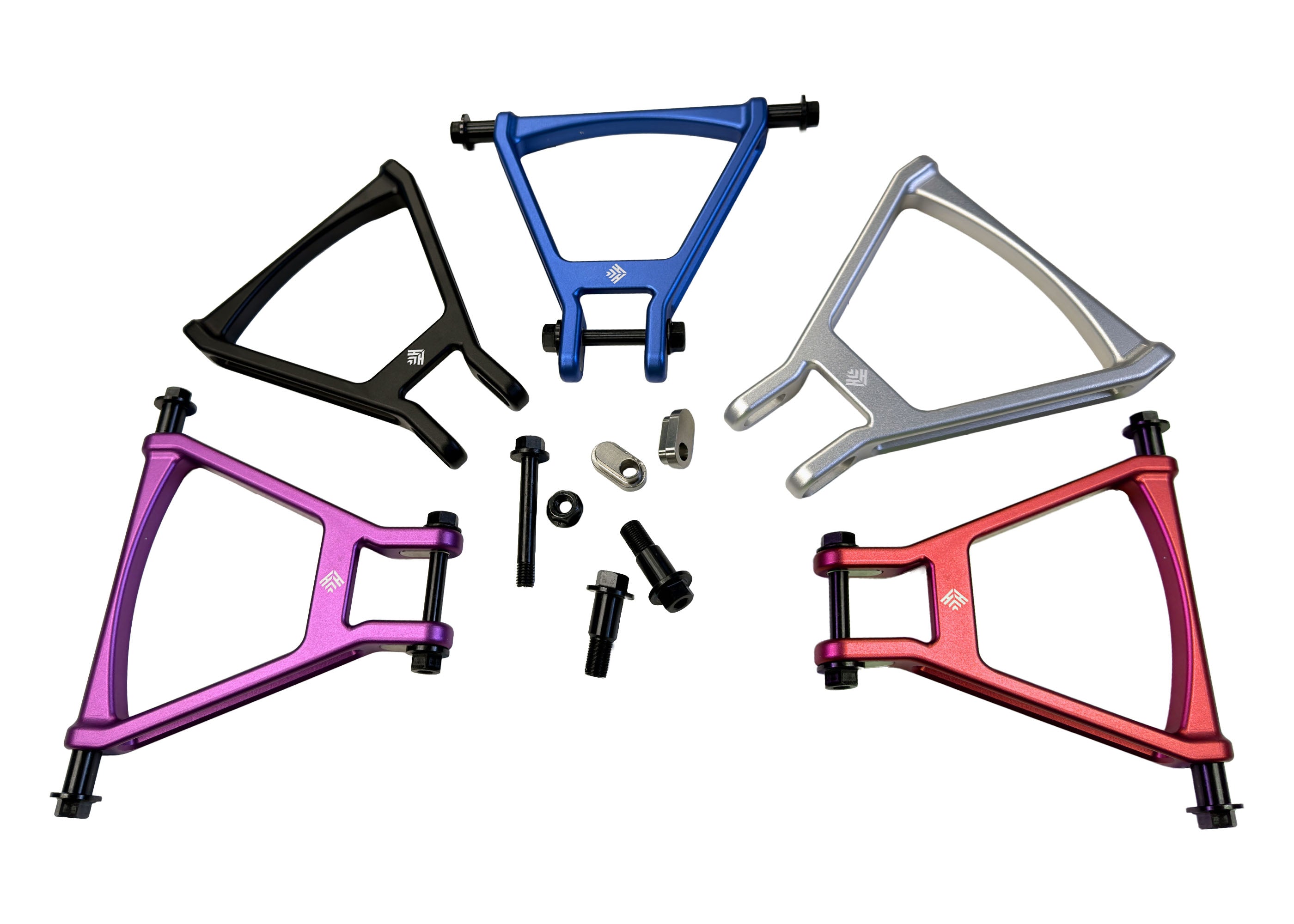

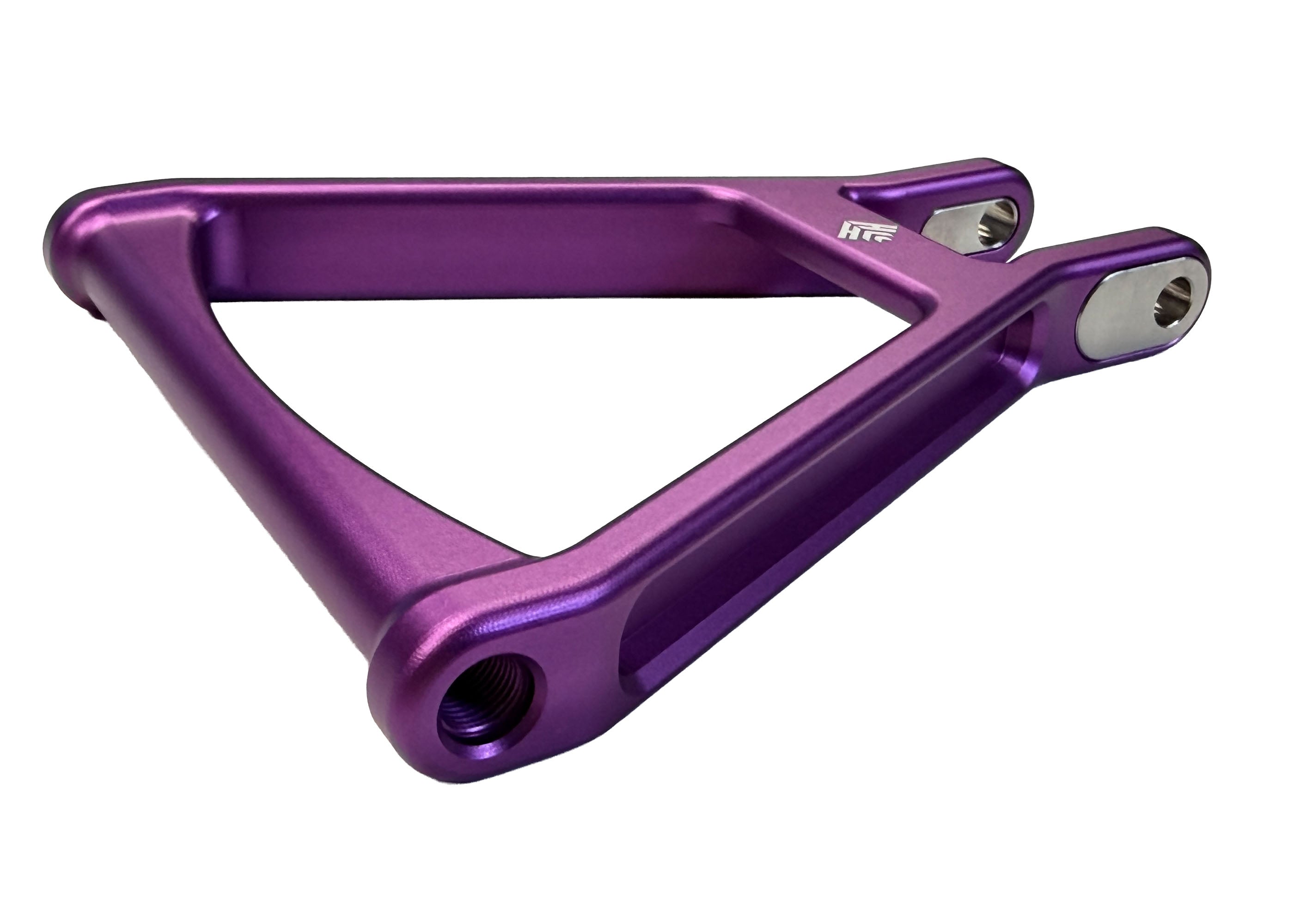

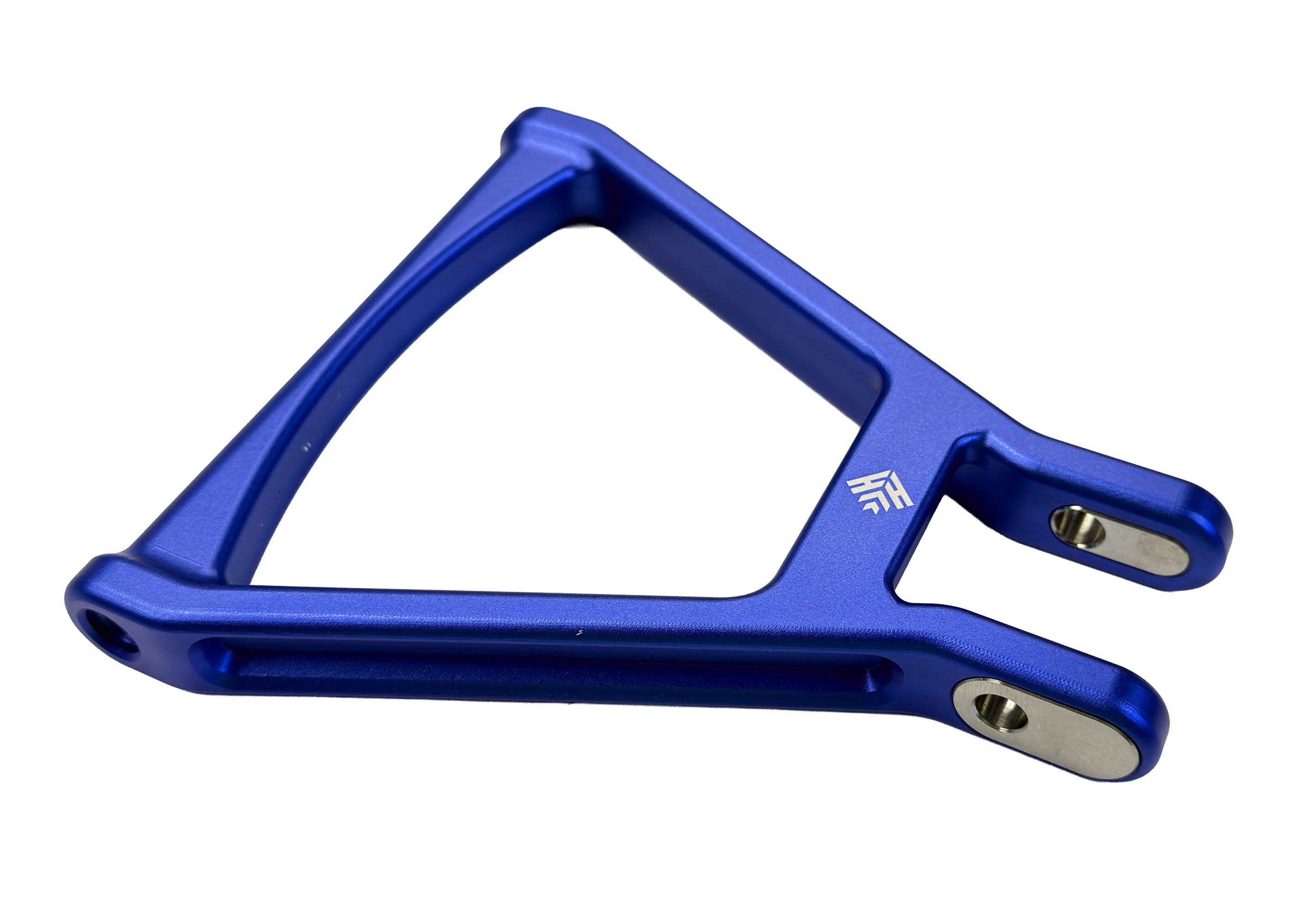

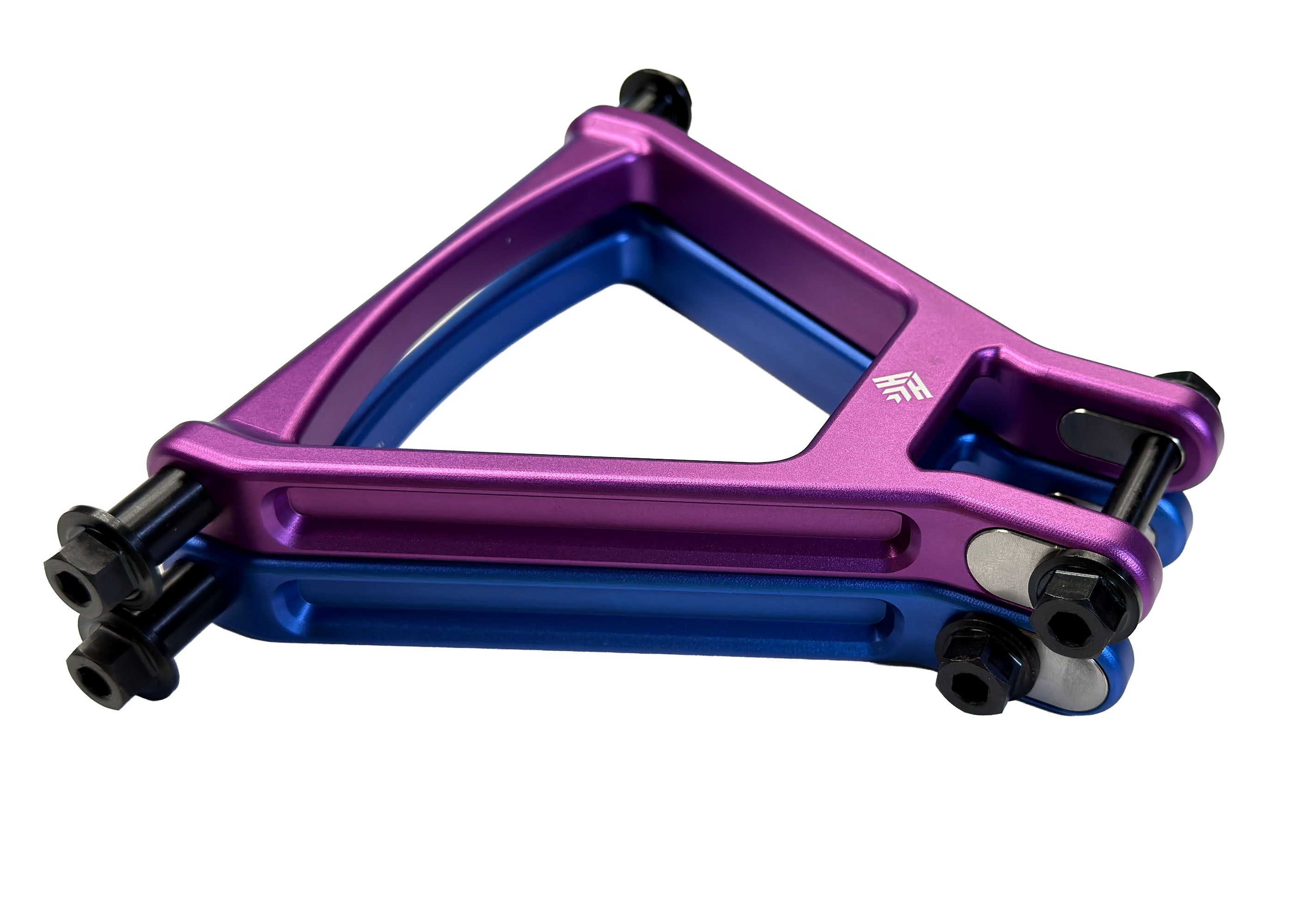

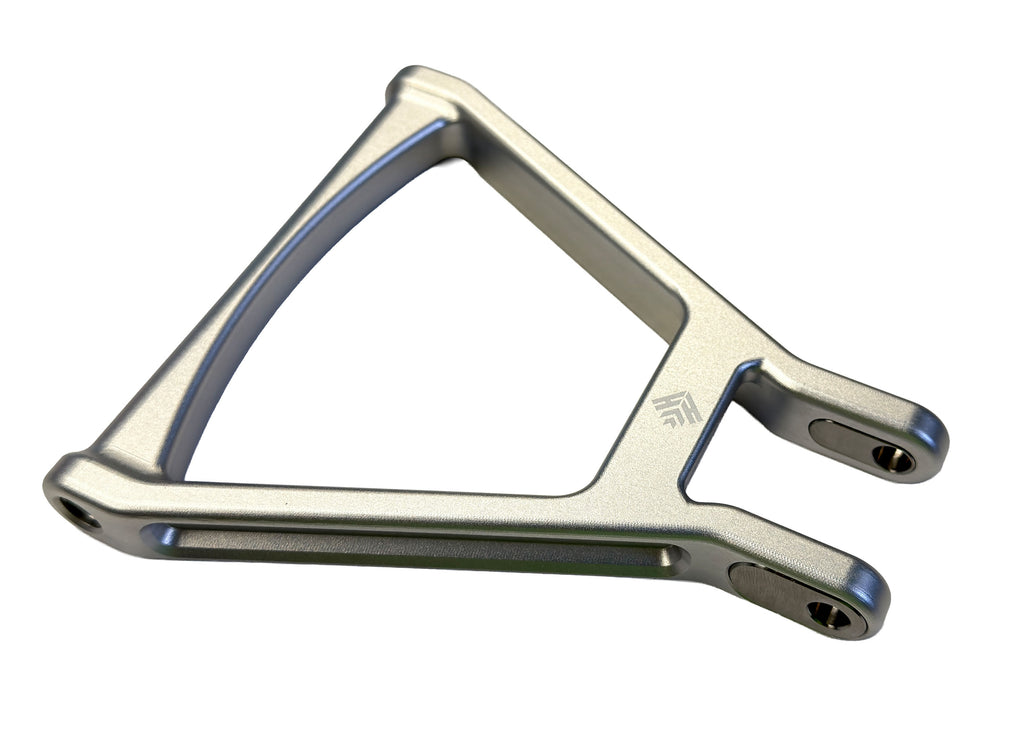

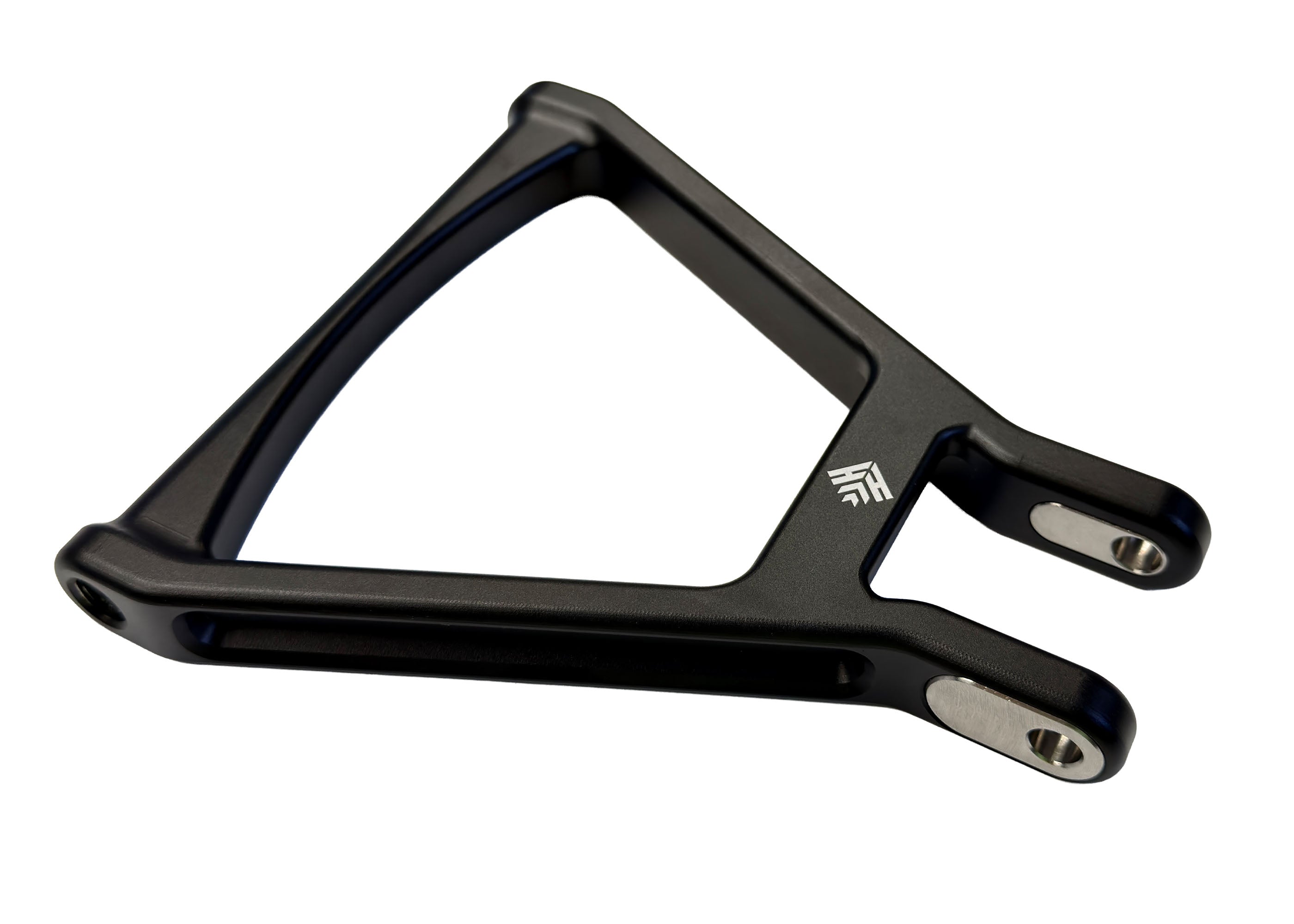

The Heavy Hitter Raysing Billet Suspension Triangle is a CNC-machined billet aluminum suspension triangle built for e-moto riders who push beyond the limit. Designed to upgrade the rear suspension linkage system with custom 52100 tool steel hardware featuring stepped shoulder bolts and a chamfered countersink that no other bolts will fit. With this triangle and hardware kit, you will never have to worry about suspension triangle failure again.

Fitment:

  • Sur Ron LBX
  • Sur Ron LBS
  • Segway X260
  • Segway X160

Download Tech Sheet (Assembly & Torque Specs)

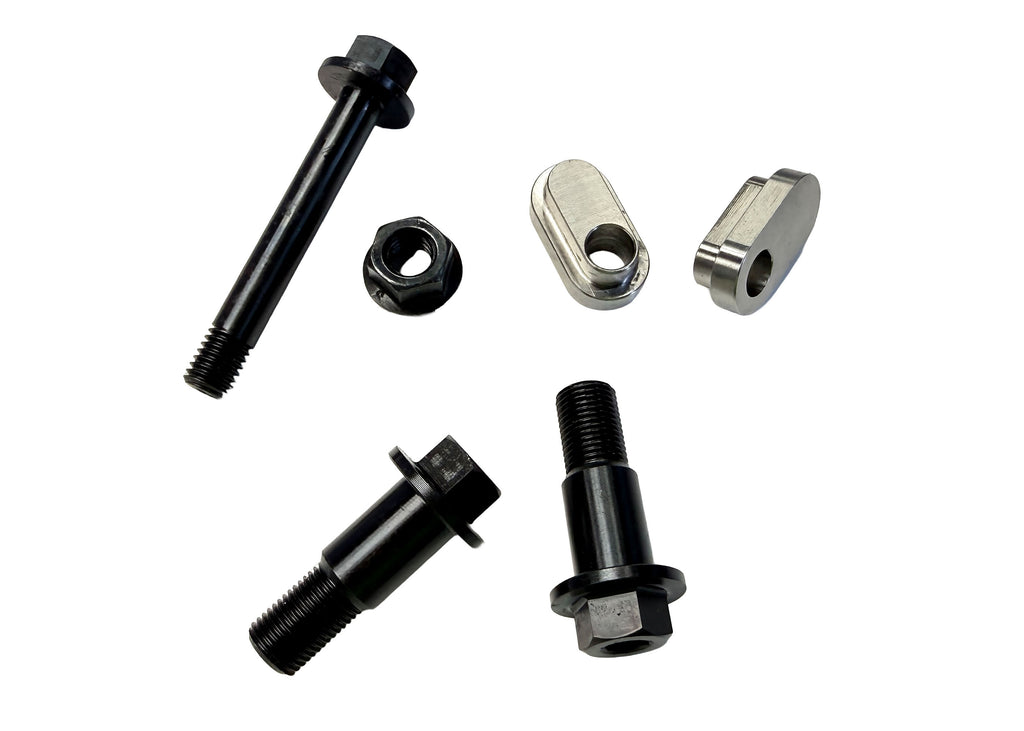

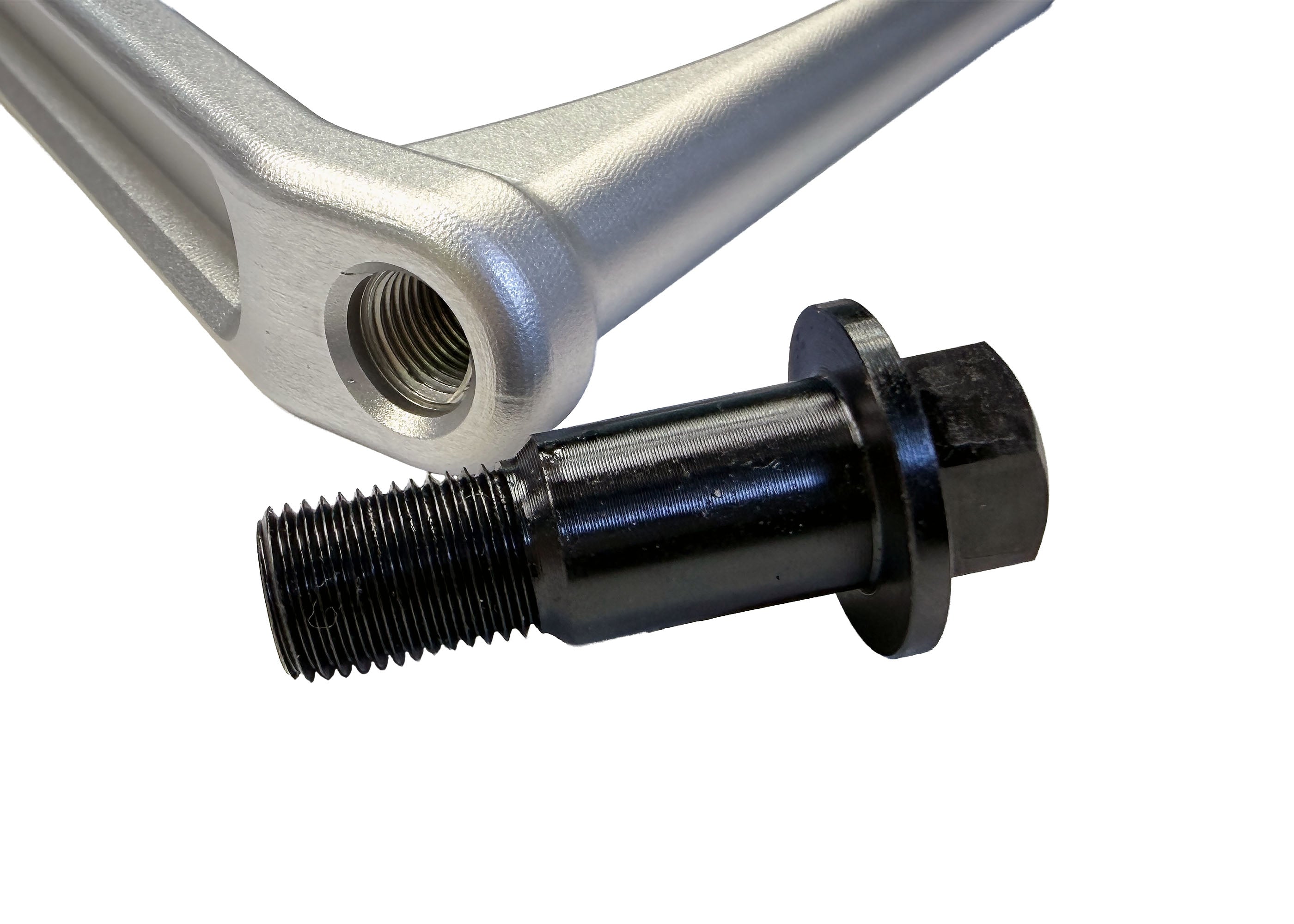

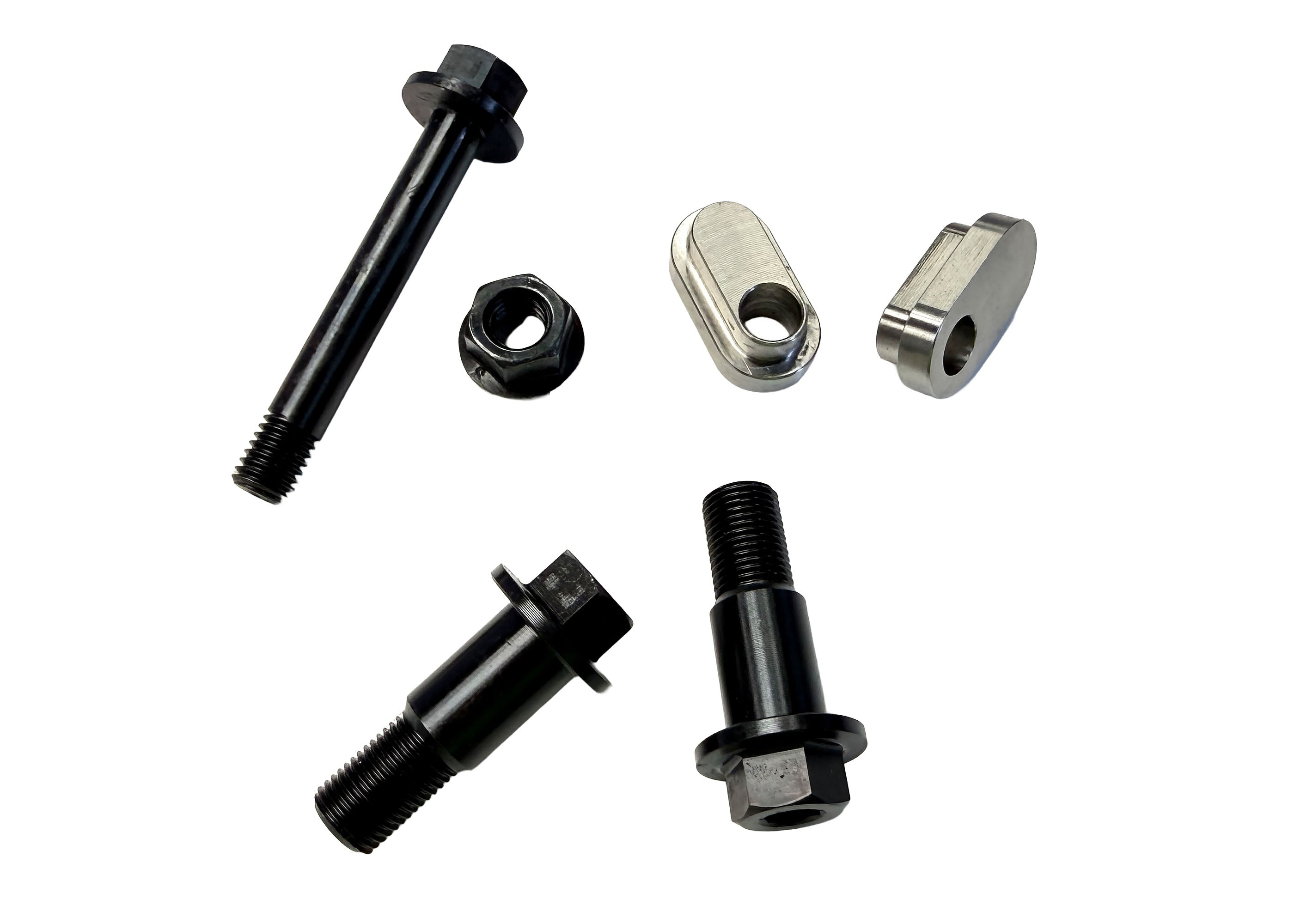

Most aftermarket triangles are already strong enough on their own. The weak point is always the hardware. The frame-to-triangle bolts are made from 52100 tool steel with a stepped shoulder that doubles as the bearing race inside the frame. Heavy Hitter eliminated the sharp 90 degree edge where OEM and aftermarket bolts typically shear, replacing it with a chamfered countersink that distributes load evenly and adds serious strength. Height adjustments come from unique flip-design tokens that change the linkage angle: in the low setting, the rear axle sits 12mm higher than stock; in the high setting, 22mm higher, roughly a 1-inch lift. Unlike systems that adjust height through the linkage and compromise structural integrity, this approach keeps the leverage ratio correct and articulation smooth. The name "Raysing" is a nod to one of our team riders notorious for breaking parts. It became an inside joke and now a label for the parts tough enough to survive him.
